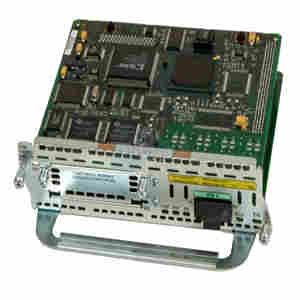

NM-1A-OC3SMI |
|
|
|
Product name：NM-1A-OC3SMI |
|
Item：CISCO |
|
 |
←[Previous：CISCO] [Next：CISCO]→ |
Details： |
|
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports: 1 x OC-3c/STM-1 WAN
Interfaces/Ports Details: 1 x SC Duplex OC-3c/STM-1 WAN
Media & Performance
Connectivity Media: Multi-mode Fiber OC-3c/STM-1
Distance Supported: 1.24 Mile Multi-mode Fiber
Data Transfer Rate: 155 Mbps OC-3c/STM-1
Management & Protocols
Management:
CiscoWorks2000 and CiscoWorks network management integration
Enhanced setup configuration
Text-based command-line interface (CLI)
Controls/Indicators
Status Indicators:
Enabled - Network module is seated correctly and is communicating to the bus
RCLK - Carrier detect
FERF - Far end Rx failure
OOF - Out of frame error condition
AIS - Alarm indication
Miscellaneous
Additional Information:
ATM Edge Connectivity
LAN-to-LAN Routing
Serial & Legacy Concentration
VPN & Firewall Solutions
Voice & Fax Integration
Support SDH G.707 and G.708 specifications
The Cisco 3620 and 3640 will not support full 155-Mbps OC-3 line rates. The actual maximum supported speed ranges between 20 and 80 Mbps, depending on packet size
RFC 1483 support for multiple encapsulations over ATM
RFC 1577 support for routing over ATM
ATM service classes: UBR, UBR+, VBR-rt, VBR-nrt, ABR, and CBR (data only)
ATM Forum UNI 3.0, UNI 3.1, and UNI 4.0
AAL5 ATM adaptation layer
Up to 1024 simultaneous Virtual Circuits (VCs)
Layer 2 per-VC queuing and traffic shaping
ATM PVCs and SVCs
Permanent Virtual Paths (PVPs) (up to three)
LANE 2.0 client and server
F4 and F5 Operations and Maintenance (OAM) cell support
ABR SVCs
MPOA client and server
Tag Switching (MPLS when approved)
IETF PPP over ATM
Next Hop Resolution Protocol (NHRP)
ATM bandwidth (resource) manager
Interim Local Management Interface (ILMI)
ATM UNI 4.0 traffic management
Frame User to Network Interface (FUNI) |
|
