NM-1A-OC3SML |
|
|
|

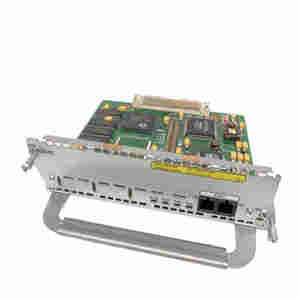

Product name：NM-1A-OC3SML |
|
Item：CISCO |
|
 |
←[Previous：CISCO] [Next：CISCO]→ |
Details： |
|
Technical Information
Application/Usage: ATM Network
Interfaces/Ports
Interfaces/Ports: 1 x OC-3c/STM-1
Interfaces/Ports Details: 1 x SC OC-3c/STM-1
Media & Performance
Connectivity Media: 9 μm Single-mode Fiber OC-3c/STM-1
Distance Supported: 9.32 Mile
Data Transfer Rate: 155 Mbps OC-3c/STM-1
Management & Protocols
Management:
MIB II
Synchronous Optical Network (SONET) MIB
ATM MIB
ATM ILMI MIB
LANE MIB
RFC 406
RFC 1595
RFC 1695
RFC 2233
CiscoWorks2000
CiscoWorks network management integration
Enhanced setup configuration
Text-based command-line interface (CLI)
Controls/Indicators
Status Indicators:
Enabled
RCLK
FERF
OOF
AIS
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -13?F (-25?C) to 158?F (70?C)
Humidity: 5% to 95% Relative Humidity
Physical Characteristics
Dimensions: 1.6" Height x 7.1" Width x 7.2" Depth
Weight (Approximate): 2.00 lb Maximum
Miscellaneous
Additional Information:
1260 to 1360 nm Wavelength
Class A EMI
RFC 1483 support for multiple encapsulations over ATM
ATM PVCs and SVCs
Layer 2 per-VC queuing
Up to 1024 simultaneous Virtual Circuits (VCs)
Permanent virtual paths (PVPs)
ATM bandwidth (resource) manager
MPOA client and server
Tag Switching (MPLS when approved)
IETF Point-to-Point Protocol (PPP) over ATM
NHRP (Next Hop Resolution Protocol)
System Requirements:
Supported on 2691, 3600 Series and 3725
Plus feature sets of IOS Release 12.0(3)T
Maximum of one ATM OC-3 network module supported on 2691, 3600 and 3725
Cisco IOS release 12.0(3)T Plus feature set specified minimum memory requirements
Operates in conjunction with all currently available Cisco 2600, 3600 and 3700 network modules and WICs
Compatibility:
Cisco 3600 Series Modular Access Routers
Certifications & Standards:
IEC 825 compliant
EN 55022
EN Class B
EN 50082-1
EN 60950
EN 41003
UL 1950
FCC Part 15
FCC Part Class A
AS/NZS 3260/AS TS001
AS/NZS 3548
AS/NZS Class A
CSA 22.2-950
VCCI Class A
FDA Class 1 laser
Warranty
Limited Warranty: 90
|
|
