NM-2W |
|
|
|

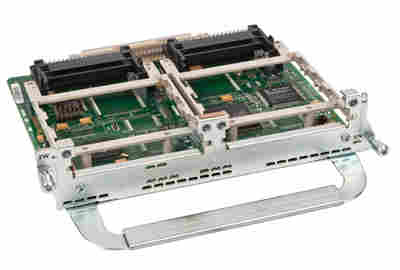

Product name：NM-2W |
|
Item：CISCO |
|
 |
←[Previous：CISCO] [Next：CISCO]→ |
Details： |
|
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports Details: No
I/O Expansions
Expansion Slots: 2 x WIC/VWIC
Reliability
MTBF: 1720096 Hour
Power Description
Power Consumption: 15 W Maximum @
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -13?F (-25?C) to 158?F (70?C) Non-operating
Humidity: 5% to 95% Relative Humidity
Physical Characteristics
Dimensions: 1.6" Height x 7.1" Width x 7.2" Depth
Weight (Approximate): 2.50 lb Maximum
Miscellaneous
Additional Information: Modular Router Solutions:
Serial & Legacy Concentration
ISDN Concentration
Protocols supported:
Full Cisco IOS software as of 12.0(7)XK
WIC Performance:
Up to 8Mb/s per WIC (with just 1 WIC installed)
The Maximum Number of NMs that can be utilized in each of the 2600/3600 families is as follows:
2600: 1
2691: 1
3620: 1
3640: 3
3660: 6
3725: 2
3745: 4
Comments:
No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules
Compatibility:
Supported Platforms & Minimum IOS Versions:
- 3745 - 12.2(8)T
- 3725 - 12.2(8)T
- 3660 series - 12.0(7)XK
- 3640 - 12.0(7)XK
- 3620 - 12.0(7)XK
- 2691 - 12.2(8)T1
- 2650 - 12.1(3)T
- 2600XM Series - 12.2(8)T1
- 2600 series - 12.0(7)XK
- 1720 - Not Available
- 1600 series - Not Available
Network interfaces:
- Compatible with all existing network modules and WICS supported by Cisco 2600/3600 family
Certifications & Standards: EMI:
FCC Part 15 Class B
CISPR 22 Class B
Regulatory Approvals:
UL 1950
Warranty
Limited Warranty: 90 |
|
