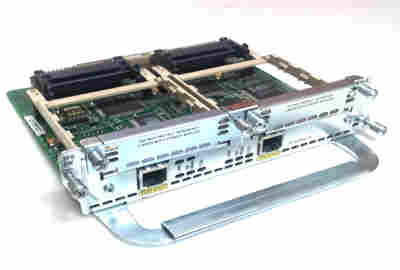

NM-2FE2W |
|
|
|
Product name：NM-2FE2W |
|
Item：CISCO |
|
 |
←[Previous：CISCO] [Next：CISCO]→ |
Details： |
|
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports: 2 x 10/100Base-TX LAN
Interfaces/Ports Details: 2 x RJ-45 10/100Base-TX Auto-sensing LAN
Media & Performance
Connectivity Media: Twisted Pair 10/100Base-TX
Data Transfer Rate: 10 Mbps Ethernet Half/Full-duplex
Data Transfer Rate: 100 Mbps Fast Ethernet Half/Full-duplex
I/O Expansions
Expansion Slots: 2 x WIC/VWIC
Controls/Indicators
Status Indicators:
Ethernet 10/100 Speed Indication
Link and full Duplex LEDS
Reliability
MTBF: 569302 Hour
Power Description
Power Consumption: 15 W Maximum @
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -13?F (-25?C) to 158?F (70?C) Non-operating
Humidity: 5% to 95% Relative Humidity
Physical Characteristics
Dimensions: 1.6" Height x 7.1" Width x 7.2" Depth
Weight (Approximate): 2.50 lb Maximum
Miscellaneous
Additional Information: Modular Router Solutions:
LAN-to-LAN Routing
VPN & Firewall Solutions
DSL Access
Dialup Remote Access
ISDN Concentration
Serial & Legacy Concentration
The Maximum Number of NMs that can be utilized in each of the 2600/3600 families is as follows:
2691: 1
3620: 2
3640: 4
3660: 6
3725: 2
3745: 4
Protocols supported:
Full Cisco IOS software as of 12.0(7)XK
WIC Performance:
Up to 8Mb/s per WIC (with just 1 WIC installed)
Uses the same Fast Ethernet controller as all other Cisco 2600/3600 Fast Ethernet ports
WICs are not hot swappable. The network modules support hot swap in the Cisco 3660.
Supports a maximum of two channel groups per VWIC
Does not support ISDN PRI
Does not support Fast EtherChannel
Comments:
No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules. Will only operate in 3600 series routers.
System Requirements:
The minimum level of IOS is IOS 12.0(7)XK or 12.1(1)T
Compatibility: Supported Platforms & Minimum IOS Versions:
3745 - 12.2(8)T
3725 - 12.2(8)T
3660 series - 12.0(7)XK
3640 - 12.0(7)XK
3620 - 12.0(7)XK
2691 - 12.2(8)T1
2650 - Not Available
2600XM Series - Not Available
2600 series - Not Available
1720 - Not Available
1600 series - Not Available
Network interfaces:
- Compatible with all existing network modules and WICs supported by Cisco 2600/3600 family
Not supported:
WIC36-1B-S/T
WIC36-1B-U
WIC-1B-S/T-LL
WIC-1ENET
Certifications & Standards: EMI:
FCC Part 15 Class B - CISPR 22 Class B
Regulatory Approvals:
UL 1950
Warranty
Limited Warranty: 90 |
|
