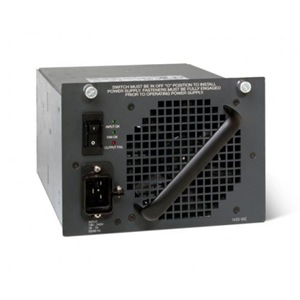

PWR-C45-1400AC |
|
|
|
产品名称：PWR-C45-1400AC |
|
产品编号：CISCO |
|
详细说明： |
|
Technical Information
Holdup Time: 20 ms
Power Description
Input Voltage: 240 V AC
Input Voltage Range: 100 V AC to 240 V AC
Output Voltage: 3.3 V DC
Output Voltage: 12 V DC
Input Current: 16 A @110 V AC/7 A @220 V AC
Output Power: 1.40 kW
Controls/Indicators
Status Indicators:
Fan cooling
Good
Fail
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -40?F (-40?C) to 167?F (75?C) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.85 ft to 6561.68 ft Operating
Miscellaneous
Additional Information:
Output Power Redundant Mode (Data): 1360W + 40W
Output Power Combined Mode (Data): 2473W
Heat Dissipation: 943 BTU/Hr
Simple Network Management Protocol (SNMP) Management Information Base (MIB) supported
System Requirements: Minimum IOS software requirement:
Cisco IOS Software Version 12.2(18)EW
Compatibility:
Cisco Catalyst 4503
Cisco Catalyst 4506
Cisco Catalyst 4507R
Cisco Catalyst 4510R
Certifications & Standards:
Safety:
UL 60950
CAN/CSA-C22.2 No. 60950
EN 60950
IEC 60950
TS 001
AS/NZS 3260
Electromagnetic Compatibility (EMC):
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 55022
EN 55024
EN 61000-6-1
EN 50082-1
EN 61000-3-2
EN 61000-3-3
ETS 300 386
Industry EMC, Safety, and Environmental Standards:
GR-63-Core Network Equipment Building Standards (NEBS) Level 3
GR-1089-Core Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3 (pending)
ETS 300 019 Stationary Use Class 3.1
ETS 300 386
Warranty
Limited Warranty: 90 Day We supply another Power Supply Modules
