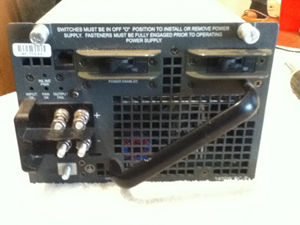

PWR-C45-1400DC-P |
|
|
|
产品名称：PWR-C45-1400DC-P |
|
产品编号：CISCO |
|
详细说明： |
|
PWR-C45-1400DC-P Technical Information Holdup Time: 4 ms
Power Description
Input Voltage Type: DC
Input Voltage: -48 V DC
Input Voltage: -60 V DC
Input Voltage Range: -48 V DC
Input Voltage Range: -60 V DC
Output Voltage: 3.3 V DC
Output Voltage: 12 V DC
Output Power: 1.40 kW
Controls/Indicators
Status Indicators:
Fan cooling: integrated in hot-insertion/hot-extraction unit
Good: green
Fail: red
Humidity: 10% to 90% Non-condensing Relative Humidity Operating
Altitude: 196.85 ft to 6561.68 ft Operating
Physical Characteristics
Hot Swappable Power Supply: Yes
Miscellaneous
Additional Information: Heat Dissipation:
Data only:1591 BTU/Hr
Data and voice: 2905 BTU/Hr
System Requirements:
Minimum IOS software requirement:
Cisco IOS Software Version 12.1(13)EW
Minimum CATOS software requirement:
Cisco CatOS Software Version 7.5(1)
Compatibility:
Cisco Catalyst 4503
Cisco Catalyst 4506
Cisco Catalyst 4507R
Certifications & Standards:
Safety:
UL 60950
CAN/CSA-C22.2 No. 60950
EN 60950
IEC 60950
TS 001
AS/NZS 3260
Electromagnetic Compatibility (EMC):
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 55022
EN 55024
EN 61000-6-1
EN 50082-1
EN 61000-3-2
EN 61000-3-3
ETS 300 386
Industry EMC, Safety, and Environmental Standards:
GR-63-Core Network Equipment Building Standards (NEBS) Level 3
GR-1089-Core Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3 (pending)
ETS 300 019 Stationary Use Class 3.1
ETS 300 386
Warranty：90DAY We have other model PSU in stock, Contact for details. |
|
 |
