AIR-AP1131AG-C-K9 |
|
|
|
产品名称：AIR-AP1131AG-C-K9 |
|
产品编号：CISCO |
|
详细说明： |
|

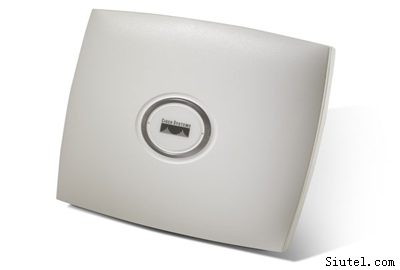

AIR-AP1131AG-C-K9
Technical Information
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.40 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5 GHz
Number of Antennas: 2
Antenna Gain: 3 dBi
Antenna Gain: 4.5 dBi
Antenna Type: Omnidirectional Antenna
Indoor Antenna Range: 450 ft
Outdoor Antenna Range: 950 ft
Wireless Transmission Speed: 108 Mbps
Wireless Security:
Security:
IEEE 802.11i
WPA2
WPA
IEEE 802.1X
AES, TKIP
FIPS 140-2 Pre-Validation List
Interfaces/Ports
Fast Ethernet Port: Yes
Management Port: Yes
Management & Protocols
Management:
BootP
Secure Shell (SSH) Protocol
Secure HTTP (HTTPS)
Trivial File Transfer Protocol (TFTP)
FTP
Telnet
Console port
Simple Network Management Protocol (SNMP) MIB I and MIB II
CiscoWorks Resource Manager Essentials (RME)
CiscoWorks Software Image Manager (SWIM)
CiscoWorks Campus Manager
CiscoWorks CiscoView
CiscoWorks WLSE
Power Description
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Power Source: Power Supply
Physical Characteristics
Form Factor: Wall Mountable
Form Factor: Ceiling Mountable
Height: 7.5"
Depth: 1.3"
Weight (Approximate): 1.48 lb
Miscellaneous
Package Contents:
Aironet AIR-AP1131AG IEEE 802.11a/b/g Access Point
Mounting hardware kit
1 x mounting plate
2 x suspended ceiling adjustable T-rail clips (accomodates standard and recessed T-rails)
1 x security hasp adapter
4 x flat head Phillips machine screws
1 x pan head Phillips machine screw
2 x plastic wall anchors
2 x pan head screws
Product quick start guide
Translated safety warnings document
Cisco product registration and Cisco documentation feedback cards
Additional Information:
Antenna Gain:
2.4 GHz: Gain 3.0 dBi-360 degrees in horizontal bandwidth
5 GHz: Gain 4.5 dBi-360 degrees in horizontal bandwidth
Certifications & Standards:
Safety:
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
NIST FIPS 140-2 level 2 validation
Radio Approvals:
FCC Part 15.247, 15.407
RSS-210 (Canada)
EMI and Susceptibility (Class B):
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
Security:
IEEE 802.11i
WPA2
WPA
IEEE 802.1X
AES, TKIP
FIPS 140-2 Pre-Validation List
Other:
IEEE 802.11g
IEEE 802.11a
FCC Bulletin OET-65C
RSS-102
Warranty
Limited Warranty: Lifetime |
|
 |
