Technical Information

Wi-Fi Standard:     IEEE 802.11a/b/g

ISM Band:     Yes

UNII Band:     Yes

ISM Minimum Frequency:     2.41 GHz

ISM Maximum Frequency:     2.40 GHz

UNII Minimum Frequency:     5.15 GHz

UNII Maximum Frequency:     5 GHz

Number of Antennas:     2

Antenna Gain:     4.5 dBi

Antenna Type:     Omnidirectional Antenna

Indoor Antenna Range:     450 ft

Outdoor Antenna Range:     950 ft

Wireless Transmission Speed:     54 Mbps

Wireless Security:     Authentication:

802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP- Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2)

MAC address and standard 802.11 authentication mechanisms

Encryption:



AES-CCMP encryption (WPA2)

TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP

Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits

Interfaces/Ports

Fast Ethernet Port:     Yes

Management Port:     Yes

Management & Protocols

Management:

Telnet

Console port

Simple Network Management Protocol (SNMP)

Trivial File Transfer Protocol (TFTP)

CiscoWorks Resource Manager Essentials (RME)

CiscoWorks Software Image Manager (SWIM)

CiscoWorks Campus Manager

CiscoWorks WLSE

CiscoWorks CiscoView

Power Description

Input Voltage:     110 V AC

Input Voltage:     220 V AC

Power Source:     Power Supply

Physical Characteristics

Form Factor:     Wall Mountable

Form Factor:     Ceiling Mountable

Height:     7.5"

Depth:     1.3"

Weight (Approximate):     1.50 lb

Miscellaneous

Package Contents:

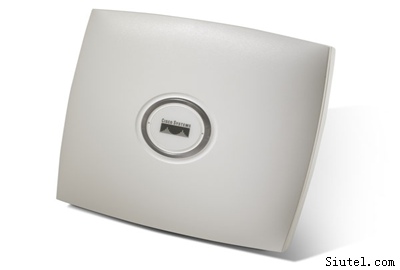

Aironet 1131AG 802.11a/b/g Wireless Access Point

Cisco 1130 Series IOS Wireless LAN (S113W7K9-12307JA)

Quick Start Guide: Cisco Aironet 1130AG Series Access Point

Safety Warnings for Cisco Aironet 1130AG Series Access Points

Cisco product registration and Cisco documentation feedback cards

One mounting plate

Two suspended ceiling adjustable T-rail clips (accommodates standard and recessed T-rails)

One security hasp adapter

Four 6 x 32 x ? in. flat head Phillips machine screws

One 8 x 32 x 3/16 in. pan head Phillips machine screw

2 No. 8 plastic wall anchors

2 No. 8 x 32 x 1 in. pan head screws

Additional Information:

System Memory:

32 MB RAM

16 MB FLASH

Certifications & Standards:

Wi-Fi

FCC configuration

Safety:

UL 60950-1

CAN/CSA-C22.2 No. 60950-1

UL 2043

IEC 60950-1

EN 60950-1

FIPS 140-2 Pre-Validation List

Common Criteria

Radio Approvals:



FCC Part 15.247, 15.407

RSS-210 (Canada)

EN 300.328, EN 301.893 (Europe)

ARIB-STD 33 (Japan)

ARIB-STD 66 (Japan)

ARIB-STD T71 (Japan)

AS/NZS 4268.2003 (Australia and New Zealand)

EMI and Susceptibility (Class B):



FCC Part 15.107 and 15.109

ICES-003 (Canada)

VCCI (Japan)

EN 301.489-1 and -17 (Europe)

Security:

WPA2

WPA

802.11ix

802.1X

AES

TKIP

FIPS 140-2 Pre-Validation List

Common Criteria (when running Cisco IOS software)

Other:



IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

FCC Bulletin OET-65C

RSS-102
Warranty: 90 day
