PWR-C45-2800ACV |
|
|
|

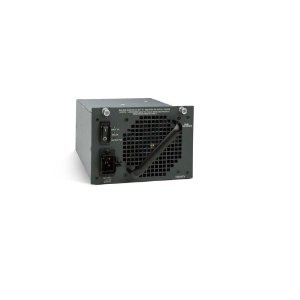

Product name：PWR-C45-2800ACV |
|
Item：CISCO |
|
 |
←[Previous：CISCO] [Next：CISCO]→ |
Details： |
|
Technical Information
Holdup Time: 20 ms
Power Description
Input Voltage: 200 V AC
Input Voltage Range: 200 V AC
Output Voltage: 12 V DC
Output Voltage: 48 V DC
Output Power: 2.80 kW
Controls/Indicators
Status Indicators:
Good
Fail
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -40?F (-40?C) to 167?F (75?C) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating
Physical Characteristics
Hot Swappable Power Supply: Yes
Miscellaneous
Additional Information:
Purpose: data & inline power
Cisco Phones Supported: 240
Integrated In-line Power: Yes (Up to 1400W)
KVA rating (Maximum): 3.52 KVA
Output Power Redundant Mode (Data): 1360W + 40W
Output Power Redundant Mode (In-line power): 1400W max. per power supply
Output Power Combined Mode (Data): 2473W
Output Power Combined Mode (In-line power): 2333W (max.)
Heat Dissipation: 2387 BTU/Hr
Simple Network Management Protocol (SNMP) Management Information Base (MIB) supported
System Requirements: Minimum IOS software requirement:
Cisco IOS Software Version 12.1(12c)EW
Minimum CATOS software requirement:
Cisco CatOS Software Version 7.4(1)
Compatibility:
Cisco Catalyst 4500 Series
Certifications & Standards: Safety:
UL 60950
CAN/CSA-C22.2 No. 60950
EN 60950
IEC 60950
TS 001
AS/NZS 3260
Electromagnetic Compatibility (EMC):
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 55022
EN 55024
EN 61000-6-1
EN 50082-1
EN 61000-3-2
EN 61000-3-3
ETS 300 386
Industry EMC, Safety, and Environmental Standards:
GR-63-Core Network Equipment Building Standards (NEBS) Level 3
GR-1089-Core Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3 (pending)
ETS 300 019 Stationary Use Class 3.1
ETS 300 386
Warranty
Limited Warranty: 90 Day
Additional Warranty Information: The warranty for the Cisco Catalyst 4500 Series is 90 days; it includes hardware replacement with a 10-day turnaround from return materials authorization (RMA)
