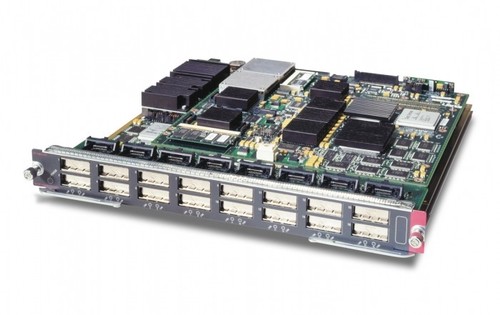

WS-X6516A-GBIC |
|
|
|
Product name：WS-X6516A-GBIC |
|
Item：CISCO |
|
 |
←[Previous：CISCO] [Next：CISCO]→ |
Details： |
|
Technical Information
Application/Usage: Switching Network
Interfaces/Ports
Interfaces/Ports Details: No
Media & Performance
Data Transfer Rate: 1 Gbps Gigabit Ethernet
I/O Expansions
Expansion Slots: 16 x GBIC
Management & Protocols
Management:
ETHERLIKE-MIB (RFC 1643)
IF-MIB (RFC 1573)
Bridge MIB (RFC 1493)
CISCO-STACK-MIB
CISCO-VTP-MIB
CISCO-CDP-MIB
RMON MIB (RFC 1757)
CISCO-PAGP-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-VLAN-BRIDGE-MIB
CISCO-VLAN-MEMBERSHIP-MIB
ENTITY-MIB (RFC 2037)
HC-RMON
RFC1213-MIB (MIB-II)
SMON-MIB
Memory
Memory: 1 MB Buffer Memory Per Port Installed
Controls/Indicators
Status Indicators:
Status
Link good
Reliability
MTBF: 61360.69 Hour
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -40?F (-40?C) to 167?F (75?C) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating
Physical Characteristics
Dimensions: 1.2" Height x 14.4" Width x 16.0" Depth
Miscellaneous
Additional Information:
Primary Applications: Data center and server farm
Interface Module Class: CEF256
Performance maximum (Mpps): 30
Forwarding engine/location: Centralized CEF Engine; located on supervisor engine's PFCx
DFC modules integrated/upgrade requirements: None integrated; upgrade with WS-F6K-DFC3 for Supervisor Engine 720 or upgrade with WS-F6K-DFC for Supervisor Engine 2-MSFC2
Fabric connections: Single 8-Gbps channel connection to switch fabric (on Supervisor Engine 720 or Supervisor Engine 2-MSFC2 with SFM) and 32-Gbps shared bus connection
Scheduler: Weighted Round Robin (WRR)
Optics: Supports hot-pluggable GBICs
Supports (SX, LX/LH, and ZX), CWDM or Category 5 RJ-45 copper GBIC interfaces
Backplane Connections: 256Gbps Switch fabric (CEF256), and 32Gpbs "Classic" Bus
Optional upgrade to distributed Cisco Express Forwarding (dCEF256) using the DFC/DFC3
Queues per Port: 3 transmit, 2 receive
Port Density/Chassis Model:
192 ports (Cisco Catalyst 6513)
128 ports (Cisco Catalyst 6509)
System Requirements: Slot requirements:
Can occupy any slot in any Cisco Catalyst 6500 Series chassis
Compatibility:
Cisco Catalyst 6500 Series chassis
Supervisor engine supported:
Supervisor Engine 1A (15 Mpps maximum)
Supervisor Engine 2
Supervisor Engine 720
Certifications & Standards: Standard Protocols:
IEEE 802.1d
IEEE 802.1p
IEEE 802.1q
IEEE 802.1s
IEEE 802.1w
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
Safety Compliance:
UL 1950
CSA C22.2 No.950
EN 60950
EN 60825-1
IEC 60950
IEC 60825-1
TS 001
CE marking
AS/NZS 3260
21CFR1040
EMC Compliance:
FCC Part 15 (CFR 47) Class A
VCCI
EN55022
EN55024
CISPR 22
CE marking
AS/NZS 3548
Warranty
Limited Warranty: 90 Days |
|
