CISCO2801-ADSL/K9 |
|
|
|
Product name：CISCO2801-ADSL/K9 |
|
Item：CISCO |
|
 |
←[Previous：CISCO] [Next：CISCO]→ |
Details： |
|

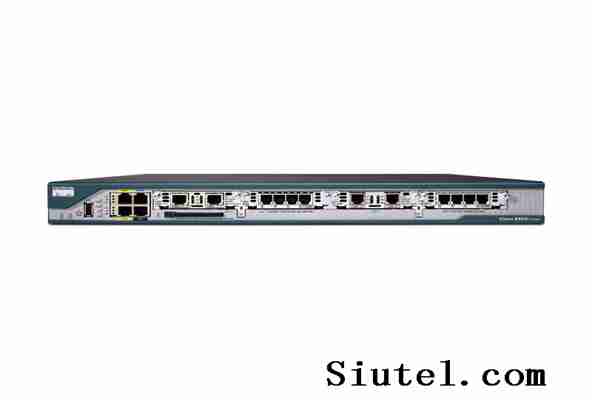

CISCO2801-ADSL/K9 - 4 x Expansion Slot, 2 x PVDM - 2 x 10/100Base-TX LAN, 1 x USB
Interfaces/Ports
Total Number of Ports: 2
USB: Yes
Management Port: Yes
Number of Network (RJ-45) Ports: 2
I/O Expansions
Number of Total Expansion Slots: 8
Expansion Slot Type: AIM
Expansion Slot Type: PVDM
Network & Communication
Network Technology: 10/100Base-TX
Ethernet Technology: Fast Ethernet
Management & Protocols
Security Features:
Multiprotocol Label Switching (MPLS) VPN support
Secure Shell (SSH)
Memory
Standard Memory: 192 MB
Maximum Memory: 384 MB
Memory Technology: DRAM
Flash Memory: 64 MB
Power Description
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Height: 1.7"
Width: 17.5"
Depth: 16.5"
Miscellaneous
Package Contents:
2801 Router
Cisco 2801 IOS SP SERVICES
Device manager for routers (ROUTER-SDM)
64MB CF default for Cisco 2800 Series (MEM2800-64CF-INC)
128 to 192MB SODIMM DRAM factory upgrade for the Cisco 2801 (MEM2801-128U192D)
1-port ADSL WAN Interface Card (WIC-1ADSL)
Lavender Cable for xDSL, Straight-through, RJ-11, 6 feet (CAB-ADSL-RJ11)
Cisco 2801 AC power supply (PWR-2801-AC)
Power Cord
One blue RJ-45-to-DB-9 console cable
One DB-9-to-DB-25 modem adapter
19-inch (48.26-cm) rack-mount brackets with bracket screws
Cable management bracket with one mounting screw
Rubber chassis feet for desktop application
Cisco product registration card
Cisco 2800 Series and Cisco 3800 Series Regulatory Compliance and Safety Information document
Cisco Router and Security Device Manager (SDM) Quick Start Guide document
Cisco 2800 Series Integrated Services Routers Quick Start Guide
Additional Information:
Interface Card Slots:
2 slots support HWIC, WIC, VIC, or VWIC type modules
1 slot supports WIC, VIC, or VWIC type modules
1 slot supports VIC or VWIC type modules
ADSL over POTS WAN Interface Card:
Supports ADSL over POTS with Annex A ITU 992.1 (G.dmt)
Supports ATM AAL5
Supports ATM Class of Service features CBR, VBR-nrt, VBR-rt, UBR
Supports IP QoS
Supports up to 23 virtual circuits on WIC
Interoperates with third party and Cisco DSLAMs
Cisco Call Manager Express (CME):
Cisco CME is an optional solution embedded in Cisco IOS Software that provides call processing for Cisco IP phones
Operation Altitude (derate 1.5?C per 1000 ft):
25?C @ 3 km/10 kft
40?C @ sea level
Certifications & Standards:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
ADSL over POTS WIC: Complies with ANSI T1.413 issue 2
USB 1.1
Safety:
UL 60950
CAN/CSA C22.2 No. 60950
IEC 60950
EN 60950-1
AS/NZS 60950
Immunity:
EN300386
EN55024/CISPR24
EN50082-1
EN61000-6-2
EMC:
FCC Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 300386
EN61000-3-3
EN61000-3-2
TELCOM:
Interfaces comply with FCC Part 68, CS-03, JATE Technical Conditions, European Directive 99/5/EC and relevant TBR's
Warranty
Limited Warranty: 90 Day
|
|
