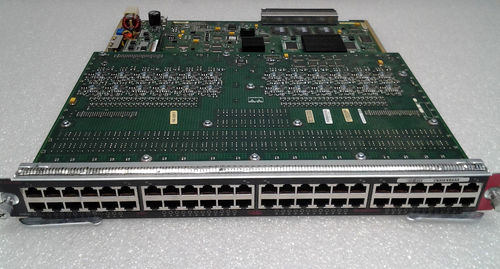

WS-X6148-RJ45 |
|
|
|
产品名称：WS-X6148-RJ45 |
|
产品编号：CISCO |
|
详细说明： |
|
Technical Information
Application/Usage: Switching Network
Interfaces/Ports
Interfaces/Ports: 48 x 10/100Base-TX LAN
Interfaces/Ports Details: 48 x RJ-45 Female 10/100Base-TX LAN
Media & Performance
Connectivity Media: Category 5 UTP
Connectivity Media: Category 5e UTP
Connectivity Media: Category 6 UTP
Connectivity Media: 100 ohm STP
Distance Supported: 328 ft Category 5 UTP Full-duplex
Distance Supported: 328 ft Category 5e UTP Full-duplex
Distance Supported: 328 ft Category 6 UTP Full-duplex
Distance Supported: 328 ft 100 ohm STP Full-duplex
Data Transfer Rate: 10 Mbps Ethernet Half/Full-duplex @ 328 ft
Data Transfer Rate: 100 Mbps Fast Ethernet Half/Full-duplex @ 328 ft
Management & Protocols
Management:
ETHERLIKE-MIB (RFC 1643)
IF-MIB (RFC 1573)
Bridge MIB (RFC 1493)
CISCO-STACK-MIB
CISCO-VTP-MIB
CISCO-CDP-MIB
RMON MIB (RFC 1757)
CISCO-PAGP-MIB
CISCO-STP-Extensions-MIB
CISCO-VLAN-Bridge-MIB
CISCO-VLAN-Membership-MIB
CISCO-UDLDP-MIB
CISCO-ENTITY-FRU-CONTROL-MIB
CISCO-COPS-CLIENT-MIB
ENTITY-MIB (RFC 2037)
HC-RMON
RFC1213-MIB (MIB-II)
SMON-MIB
Memory
Memory: 128 KB Buffer Memory Per Port Installed
Controls/Indicators
Status Indicators:
Status
Link good
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -40?F (-40?C) to 167?F (75?C) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating
Physical Characteristics
Dimensions: 1.2" Height x 14.4" Width x 16.0" Depth
Miscellaneous
Additional Information:
Forwarding architecture: Use centralized CEF forwarding
Distributed forwarding upgrade: None; Classic interface modules cannot be upgraded for distributed forwarding
Primary Applications: Base Wiring Closet
Interface Module Class: Classic
Backplane Connection: Bus
Queues per Port (Tx = Transmit, Rx = Receive): Tx-2q2t, Rx-1q4t
Voice-capable modules upgradable to Cisco Inline Power or 802.3af
Performance/ Forwarding Rate (Mpps): 32 Gbps; 15 Mpps per system
Forwarding Engine Architecture: Supervisor engine CPU makes forwarding decision
DFC Upgrade Requirements: Not supported
Fabric Connections: 32 Gbps shared bus connection (on Supervisor Engine1A, Supervisor Engine 2, and Supervisor Engine 720)
Scheduler: Weighted Round Robin (WRR)
Inline Power: Yes
Port Density/Chassis Model:
576 ports (Cisco Catalyst 6513)
384 ports (Cisco Catalyst 6509)
System Requirements: Slot requirements:
Can occupy any slot in any Cisco Catalyst 6500 Series chassis
Compatibility:
Cisco Catalyst 6500 Series
Supervisor Engine Supported:
Supervisor Engine 1A
Supervisor Engine 2
Supervisor Engine 720
Certifications & Standards: Standard Network Protocols:
Ethernet: IEEE 802.3, 10BASE-T
Fast Ethernet: IEEE 802.3, 100BASE-TX, and 100BASE-FX
IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad
Safety Compliance:
UL 1950
CSA-C22.2 No. 950
EN 60950
IEC 950
AS/NZS 3260
IEC 825
EN 60825
21CFR1040
EMC Compliance:
FCC Part 15 (CFR 47) Class A
VCCI Class A with UTP, Class B with STP
EN55022 Class A with UTP, Class B with STP
CISPR 22 Class A with UTP, Class B with STP
CE marking
AS/NZS 3548 Class A with UTP, Class B with STP
Warranty
Limited Warranty: 90 |
|
 |
