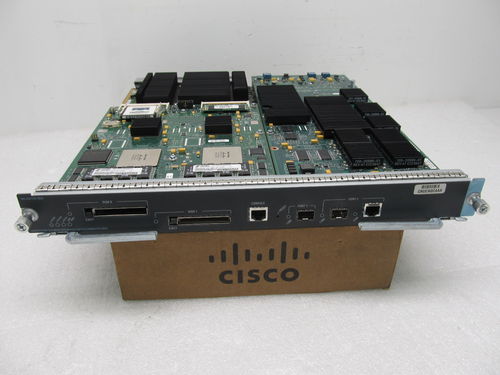

WS-SUP720-3B |
|
|
|
产品名称：WS-SUP720-3B |
|
产品编号：CISCO |
|
详细说明： |
|
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports: 2 x Gigabit Ethernet Uplink
Interfaces/Ports Details: 1 x RJ-45 Console RS-232 Management
Interfaces/Ports Details: 1 x RJ-45 10/100/1000Base-T Shared
Media & Performance
Connectivity Media: Twisted Pair
Data Transfer Rate: 10 Mbps Ethernet
Data Transfer Rate: 100 Mbps Fast Ethernet
Data Transfer Rate: 1 Gbps Gigabit Ethernet
I/O Expansions
Expansion Slots: 1 x SFP (mini-GBIC) Shared
Expansion Slots: 1 x SFP (mini-GBIC)
Expansion Slots: 2 x CompactFlash Card Slot
Management & Protocols
Management:
Cisco Works
VLAN
Protocols: BGP v4
Protocols: CDP
Protocols: IS-IS
Protocols: RIP
Protocols: OSPF
Protocols: IPX
Protocols: DECnet
Protocols: TCP/IP
Protocols: ICMP
Protocols: AppleTalk
Protocols: IGMP
Protocols: IPv6
Protocols: GRE
Protocols: VTP
Protocols: STP
Protocols: LDP
Protocols: TDP
Security Features: Access Control Lists (ACL)
Security Features: 802.1X Port-based Network Access Control
Memory
Memory: 512 MB DRAM Supported
Memory: 64 MB Boot Flash
Memory: 128 MB CompactFlash (CF) Card Supported
Memory: 256 MB CompactFlash (CF) Card Supported
Memory: 512 MB CompactFlash (CF) Card Supported
Memory: 64 MB CompactFlash (CF) Card Supported
Memory: 1 GB DRAM Supported
Power Description
Input Current: 6.72 A
Power Consumption: 282 W
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -40?F (-40?C) to 167?F (75?C) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Physical Characteristics
Dimensions: 1.6" Height x 15.3" Width x 16.3" Depth
Weight (Approximate): 11.50 lb
Miscellaneous
Package Contents:
Catalyst 6500/Cisco 7600 Supervisor Engine 720 Fabric MSFC3 PFC3B (WS-SUP720-3B)
Cisco CAT6000-SUP720 IOS IP W/SSH/3DES (S733ZK9-12217SXB)
Additional Information:
RS-232 Console Port
The MSFC3 is an integral part of the Supervisor Engine 720, providing high performance, multilayer switching and routing intelligence.
Number of Interfaces with unique ACLs: 4000
The Supervisor Engine 720 features the PFC3, which is equipped with a high-performance ASIC complex supporting a range of hardware-based features.
Supervisor engine 720 supports all Cisco Catalyst 6500 Series interface module classes (Classic, CEF256, dCEF256, and CEF720) offering hardware support for MPLS and IPv6.
Label imposition/disposition (MPLS-PE), swapping (MPLS-P) also supported
CPU rate limiters (DoS protection): 10 special case rate limiters plus Control Plane Policing
Multicast forwarding, Protocol independent Multicast (PIM) support
Support for Virtual Integrated Network Service (VINES), Connectionless Network Service (CLNS)
Port security
Reliability and availability:
FSU (Fast software upgrade)
RPR+ (Route Processor Redundancy+)
SSO+NSF (Stateful Switchover + Nonstop Forwarding)
OIR (Online insertion and removal) Hot Swap
Fan tray and power supply required:
High speed fan
2500W AC or DC
System Requirements:
Slot requirements:
3-slot chassis: slots 1 and 2
6-slot chassis: slots 5 and 6
9-slot chassis: slots 5 and 6
13-slot chassis: slots 7 and 8
Compatibility:
Chassis compatibility:
Cisco 6503, 6503-E, 6506, 6506-E, 6509, 6509-E, 6509-NEB, 6509-NEB-A, 6513
Cisco 7603, 7606, OSR-7609, 7609, 7613
Software compatibility:
Catalyst 6500 Series: Cisco IOS 8.3(2) and higher
Native: Cisco IOS 12.2(17d)SXB1 and higher
Cisco 7600 Series: Cisco IOS 12.2(17d)SXB1 and later
Certifications & Standards:
IEEE 802.1x
IEEE 802.1q
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
CE Markings
Safety:
UL 60950
EN 60950
CSA-C22.2 No. 60950
IEC 60950
AS/NZS 3260
IEC 60825-1,-2
EN 60825 -1,-2
21CFR1040-10
TS001
EMC
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55022 Class A
CISPR 22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN55024
ETS300 386
EN50082-1
EN61000-6-1
Warranty
Limited Warranty: 90 DAY |
|
 |
