Total Number of Network Ports:     24

Number of Network (RJ-45) Ports:     24

Port/Expansion Slot Details:     4 x Gigabit Ethernet Expansion Slot



Media & Performance

Media Type Supported:     Twisted Pair

Twisted Pair Cable Standard:     Category 5

Ethernet Technology:     Gigabit Ethernet

Network Technology:     10Base-T

Network Technology:     10/100/1000Base-T



I/O Expansions

Number of Total Expansion Slots:     4

Expansion Slot Type:     SFP

Number of SFP Slots:     4



Network & Communication

Layer Supported:     3



Management & Protocols

Manageable:     Yes

Management:

SNMPv1, SNMPv2c, and SNMPv3

policy management

Command-line interface (CLI)

Resource Manager Essentials

Web-based management

Cisco Network Assistant Software

Four thousand VLAN IDs are supported

Management console port: RJ-45-to-DB-9 cable for PC connections

Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN.

Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported

Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events).

VLAN trunks can be created from any port, using either standards-based 802.1Q tagging or the Cisco Inter-Switch Link (ISL) VLAN architecture.

Remote SPAN (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.



Memory

Standard Memory:     128 MB

Memory Technology:     DRAM

Flash Memory:     32 MB

Reliability

MTBF:     186300 Hour



Power Description

Input Voltage:     110 V AC

Input Voltage:     220 V AC



Physical Characteristics

Height:     1.7"

Width:     17.5"

Depth:     14.9"

Weight (Approximate):     13.50 lb



Miscellaneous

Package Contents:

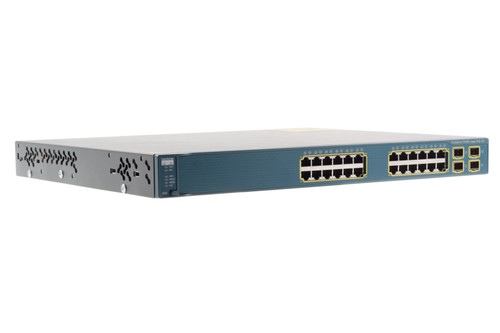

Catalyst 3560 Switch

Regulatory Compliance and Safety Information for the Catalyst 3560 Switch

Product registration card

AC power cord (AC-powered switches)

One RJ-45-to-DB-9 adapter cable

Mounting kit containing:



Four rubber feet for mounting the switch on a table

Two 19-inch rack-mounting brackets (also used for wall mounting)

Six Phillips flat-head screws for attaching the brackets to the switch

Four Phillips machine screws for attaching the brackets to a rack

One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets

One redundant power system (RPS) connector cover (for wall mounting)

Two Phillips pan-head screws (for attaching the RPS cover)

Four Phillips truss-head screws (for wall-mounting brackets)



Additional Information:

Advanced IP routing

Configurable up to 11,000 unicast routes

Configurable up to 1000 IGMP groups and multicast routes

Acoustic Noise: 38-44 dBa

DC Input Voltages (RPS Input): 14A

Power Rating: 0.52 kVA

Telco: Common Language Equipment Identifier (CLEI) code

Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (Jumbo frames), for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports.



POE:



Maximum power supplied per port: 15.4W

Total power dedicated to PoE: 370W

QoS and Control:



Advanced QoS

Granular Rate Limiting: The Cisco Committed Information Rate (CIR) function guarantees bandwidth in increments as low as 8 kbps.

Certifications & Standards:     IEEE:

IEEE 802.1s

IEEE 802.1w

IEEE 802.1x

IEEE 802.3ad

IEEE 802.3af

IEEE 802.3x

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1p CoS Prioritization

IEEE 802.1Q VLAN

IEEE 802.3 10BASE-T specification

IEEE 802.3u 100BASE-TX specification

IEEE 802.3ab 1000BASE-T specification

IEEE 802.3z 1000BASE-X specification

Safety Certifications:



UL to UL 60950, Third Edition

C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition

TUV/GS to EN 60950:2000

CB to IEC 60950 with all country deviations

NOM to NOM-019-SCFI

CE Marking

Electromagnetic Emissions Certifications:



FCC Part 15 Class A

EN 55022: 1998 (CISPR22)

EN 55024: 1998 (CISPR24)

VCCI Class A

AS/NZS 3548 Class A

CE

CNS 13438 Class A

MIC

MIB:



BRIDGE-MIB

CISCO-CDP-MIB

CISCO-CLUSTER-MIB

CISCO-CONFIG-MAN-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

CISCO-ENVMON-MIB

CISCO-FLASH-MIB

CISCO-FTP-CLIENT-MIB

CISCO-HSRP-MIB

CISCO-HSRP-EXT-MIB

CISCO-IGMP-FILTER-MIB

CISCO-IMAGE-MIB

CISCO-IP-STAT-MIB

CISCO-L2L3-INTERFACE-CONFIG-MIB

CISCO-MAC-NOTIFICATION-MIB

CISCO-MEMORY-POOL-MIB

CISCO-PAGP-MIB

CISCO-PING-MIB

CISCO-PROCESS-MIB

CISCO-RTTMON-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-SYSLOG-MIB

CISCO-TCP-MIB

CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VTP-MIB

ENTITY-MIB

ETHERLIKE-MIB

IF-MIB

IGMP-MIB

IPMROUTE-MIB

OLD-CISCO-CHASSIS-MIB

OLD-CISCO-FLASH-MIB

OLD-CISCO-INTERFACES-MIB

OLD-CISCO-IP-MIB

OLD-CISCO-SYS-MIB

OLD-CISCO-TCP-MIB

OLD-CISCO-TS-MIB

OSPF-MIB (RFC 1253)

PIM-MIB

RFC1213-MIB

RFC1253-MIB

RMON-MIB

RMON2-MIB

SNMP-FRAMEWORK-MIB

SNMP-MPD-MIB

SNMP-NOTIFICATION-MIB

SNMP-TARGET-MIB

SNMPv2-MIB

TCP-MIB

UDP-MIB



Warranty

Limited Warranty:  90 Days
