VIC-4FXS/DID |
|
|
|
产品名称：VIC-4FXS/DID |
|
产品编号：USED |
|
详细说明： |
|

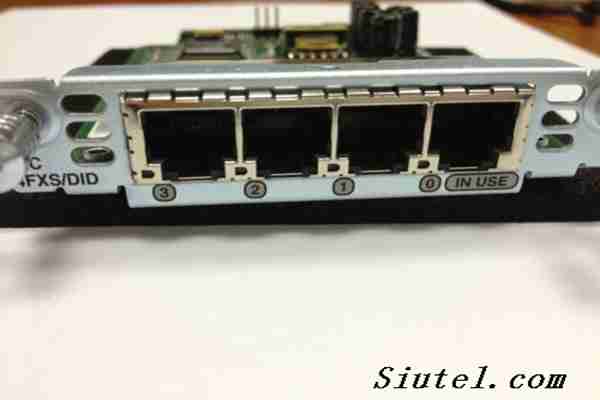

VIC-4FXS/DID
Technical Information
Application/Usage Voice
Interfaces/Ports
Interfaces/Ports 4 x FXS/DID
Interfaces/Ports Details 4 x RJ-11 FXS/DID
Reliability
MTBF 2131306 Hour
Miscellaneous
Additional Information
For Cisco 2600XM, 2691, 3640, 3660, and 3700 platforms, only FXS functionality is supported
For the VIC-4FXS/DID, the Cisco 1751 and 1760 platforms are the only places where both the DID functionality and FXS functionality of the card are supported
Voice & Fax Integration
Caller ID support
A maximum of eight REN loads can be supported on each 4-port FXS/DID VIC
Minimum Feature Sets: IP/VOX PLUS
Ringing frequencies: 20 Hz, 50 Hz
Tone disconnect supervision: DID-Power denial (caller party control, far-end disconnect)
Signaling Formats:
DID mode: Immediate, delay dial, wink start
FXS mode: Groundstart and loopstart
Address Signaling formats:
In-band dual tone multifrequency (DTMF)
Out-of-band pulse (10/20 pps)
System Requirements
Supported Platforms & Minimum IOS Versions:
3845 - 12.3(11)T
3825 - 12.3(11)T
3745 - 12.2(15)ZJ
3725 - 12.2(15)ZJ
3660 series - 12.2(15)ZJ
2691 - 12.2(15)ZJ
2600XM Series - 12.2(15)ZJ
1760 - 12.2(8)YN
1751 - 12.2(15)ZL
Compatibility
Supported Platforms:
3845
3825
3745
3725
3640
3660 series
2691
2600XM Series
1760
1751
Supported Carrier Modules:
2600XM: NM-1V, NM-2V, NM-HD-1V, NM-HD-2V, NM-HD-2VE, NM-HDV2-1T1/E1, NM-HDV2-2T1/E1
3640, 3660: NM-1V, NM-2V, NM-HD-1V, NM-HD-2V, NM-HD-2VE
2691, 3725, 3745: NM-1V, NM-2V, NM-HD-1V, NM-HD-2V, NM-HD-2VE, NM-HDV2, NM-HDV2-1T1/E1, NM-HDV2-2T1/E1
Certifications & Standards
Compliance:
FCC Class B device
CE
Safety Conformance:
UL1950
Warranty
Limited Warranty: 90 Day |
|
 |
