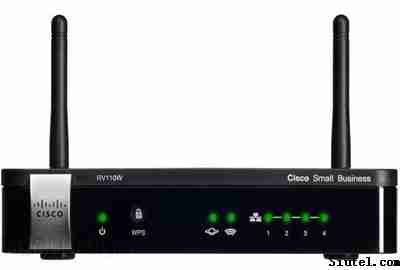

RV110W-A-NA-K9 |
|
|
|
产品名称：RV110W-A-NA-K9 |
|
产品编号：CISCO |
|
详细说明： |
|
Feature
Description
Routing
• Static routing
• Dynamic routing
• Routing Information Protocol (RIP) v1 and v2
• Inter-VLAN routing
Layer 2
• 802.1Q-based VLANs
• 4 active VLANs (3 to 4094 range)
Network
• Dynamic Host Configuration Protocol (DHCP) server
• Point-to-Point Protocol over Ethernet (PPPoE)
• Point-to-Point Tunneling Protocol (PPTP)
• Layer 2 Tunneling Protocol (L2TP)
• DNS proxy
• DHCP relay agent
• IGMP Proxy and multicast forwarding
• Internet Group Management Protocol (IGMP) proxy and multicast forwarding
• Rapid Spanning Tree Protocol (RSTP)
• Dynamic DNS (DynDNS), TZO, 3322.org)
• Network Address Translation (NAT), Port Address Translation (PAT)
• Port management
• Port Mirroring
• Software-configurable network edge (DMZ) to any LAN IP address
IPv6
• Dual-stack IPv4 and IPv6
• 6to4 tunneling
• Multicast Listener Discovery (MLD) for IPv6 (RFC 2710)
• Stateless address auto-configuration
• DHCP v6 Server for IPv6 Clients on LAN
• DHCP v6 client for WAN connectivity
• Internet Control Message Protocol (ICMP) v6
• Static IPv6 Routing
• Dynamic IPv6 Routing with RIPng
• IPv6 Rapid Deployment
Security
• Stateful packet inspection (SPI) firewall
• Port forwarding and triggering
• Firewall Access Control Lists and Content Filtering
• Denial-of-service (DoS) prevention
• MAC-based wireless access control
• Static URL blocking or keyword blocking
• Schedule-based Internet access policy
• HTTPS web access to the device manager
• Username/password complexity enforcement
• Self-signed SSL certificate
• Import and export certificate using Privacy-Enhanced Mail (PEM) format
VPN
• 5 IPsec client sessions using Cisco QuickVPN client
• 5 PPTP client sessions for remote client access
• Triple Data Encryption Standard (3DES) VPN pass-through of PPTP, L2TP, and IPsec
• 1 IPSec Site-to-Site tunnel
Quality of service (QoS)
• 802.1p port-based priority on LAN port, application-based priority on WAN port
• 4 queues
• Differentiated Services Code Pointsupport (DSCP)
• Class of Service (CoS)
• Bandwidth Management for service prioritization
Management
• Simple Network Management Protocol (SNMP) v3
• Event logging: local, syslog, email alerts
• Firmware upgradable through web browser
• Imported/exported configuration in text format
• Simple browser-based configuration (HTTP/HTTPS)
• Bonjour and Universal Plug and Play (UPnP)
• Network diagnostics: Ping, Traceroute, and DNS Lookup
Performance
• NAT throughput: 90 Mbps
• Concurrent sessions: 5,000
• VPN throughput: 5Mbps
WLAN hardware
IEEE 802.11n standard-based access point with 802.11b/g compatibility
Radio and modulation type:
• 802.11b: direct sequence spread spectrum (DSSS)
• 802.11g/n: orthogonal frequency division multiplexing (OFDM)
• 2 omnidirectional 1.8 dBi gain fixed external antennas
Operating channels:
• 11 in North America
• 13 in most of Europe
• Automatic channel selection
Transmit power:
• 802.11b: 17 dBm +/- 1.5 dBm
• 802.11g: 15 dBm +/- 1.5 dBm
• 802.11n: 12.5 dBm +/- 1.5 dBm
Receiver sensitivity:
• -87 dBm at 11 Mbps
• -71 dBm at 54 Mbps
• -68 dBm at msc15, HT20 / -66dBm at mcs15, HT40
Wireless Domain Services (WDS)
• Allows wireless signals to be repeated by up to 3 compatible devices
Wi-Fi Multimedia (WMM)
• WMM with QoS (802.11e), WMM power save (WMM-PS)
Active WLAN clients
• Up to 32 clients
Service Set Identifiers (SSIDs)
• Up to 4 separate wireless networks
Wireless isolation
• Wireless isolation between clients
WLAN security
• WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise
WAN
One 10/100 Mbps Fast Ethernet WAN port
LAN
Four 10/100 Mbps Fast Ethernet LAN ports
WLAN
Built-in 802.11n wireless access point
LEDs
Power, WPS, WAN, Wireless, LAN (ports 1-4)
Switch
Power button (on/off)
Physical dimensions and weight
• W x D x H = 5.91 in. x 5.91 in. x 1.18 in. (150 mm x 150 mm x 30 mm)
• Weight: 0.61 lb (0.3 kg)
Power
12V 1A
Certifications
• FCC Class B
• CE
• IC
• cUL
• Wi-Fi
Environmental operating range
• Operating temperature: 0° to 40°C (32° to 104°F)
• Storage temperature: -20° to 70°C (-4° to 158°F)
• Operating humidity: 10% to 85% noncondensing
• Storage humidity: 5% to 90% noncondensing
Network adapter
PC with network adapter and Ethernet cable
Web-based configuration
Web browser |
|
 |
