Application/Usage Data Networking

Interfaces/Ports

Interfaces/Ports 8 x T1/E1 WAN

Interfaces/Ports Details 8 x RJ-48C T1/E1 WAN



Connectivity Media Cable



Management

Simple Network Management Protocol (SNMP) compliant

Manageable via a MIB browser

CiscoView interface for configuration

Cisco Voice Manager (CVM) supported

Netsys supported

Country Support

Approved in most countries

Software-configurable ring-cadence and call-progress tones

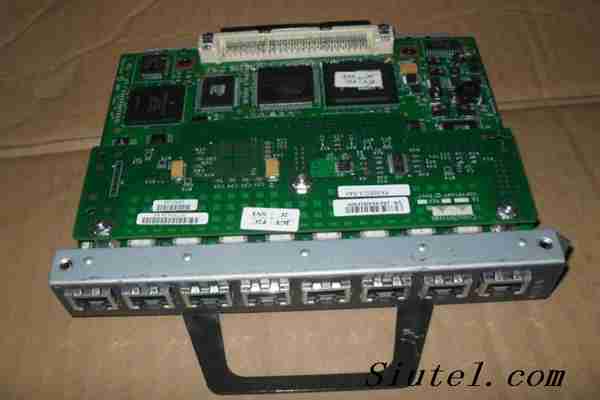

Additional Information The PA-MCX has the following features:

Universal ports: Eight interface ports per port adapter are configurable as either T1 (with integrated CSU/DSU) or E1 (with an integrated G.703/G.704 120-ohm interface). Additionally, a port may be configured on a per-DS0 basis for voice termination, TDM pass-through (cross-connect), or data.

MIX support: Voice channels can be TDM switched between port-adapter slots in the Cisco 7200 VXR chassis. This allows DSP resources to be shared between port adapters in the same chassis or for port-to-port DS0 crossconnect between port-adapter slots.

DS0 "drop and insert": Flexible TDM cross-connect capability between ports and the MIX bus is available.

Multiple clocking options: Ports can be clocked internally from the network, or the network clock from one port can be sent to the other port on the card or to other cards across the MIX bus in the Cisco 7200 VXR chassis.



T1 CAS (robbed-bit signaling)

E1 CAS-R2

PRI (user and network side)

Transparent CCS

Q.SIG

FG-D

Multi-D channel



DS1 100-ohm interfaces with RJ-48c connectors

D4 Super Frame (SF) and Extended Superframe (ESF) framing

Alternate-mark-inversion (AMI) or binary-8-zero-substitution (B8ZS) line encoding

Full facility-data-link (FDL) support and FDL performance monitoring per ANSI T1.403 or AT&T TR 54016

Selectable DSX-1 cable length in increments from 0 to 655 feet

Selectable DS1 CSU line build-out: 0, -7.5, -15, and -22.5 dB

Selectable DS1 CSU receiver gain: 26 or 36 dB

DS1 line protection per UL1459/1950, FCC part 68

Full support for DSX-1 Management Information Base (MIB), RFC 1406, including alarm detection and reporting

DSX-1 MIB remote access supported

DS0 drop and insert



Port Configured with E1 Features:

E1 120-ohm (G.703) with RJ-48c connectors

Software-configurable E1 national bits

HDB3, AMI encoding

CRC4 and non-CRC4 framing

Full support for E1 MIB, RFC 1406, including alarm detection and reporting

DS0 drop and insert



Full Bit-Error, Rate-Testing Capabilities on Each E1/T1:

Programmable pseudo-random pattern up to 24-bits long, including 211-1, 215-1, 220-1, 220-1 QRSS, 233-1, all zeros, all ones, alternating ones and zeros

32-bit-error count registers

Supported Loopbacks

Line loopback: The T1/E1 stream is looped back at the LIU toward the network.

Payload loopback: The T1/E1 data stream is looped back at the framer toward the network.

Diagnostic local loopback: The T1/E1 data stream is looped back at the framer toward the system.

Remote loopback: The T1 stream is looped back at the LIU toward the network upon request from the far end via FDL command.

System Requirements

The MIX multichannel T1/E1 port adapter is supported in all Cisco IOS® feature sets starting with Release 12.1(5)T.

Compatibility

Cisco 7200 VXR series routers
