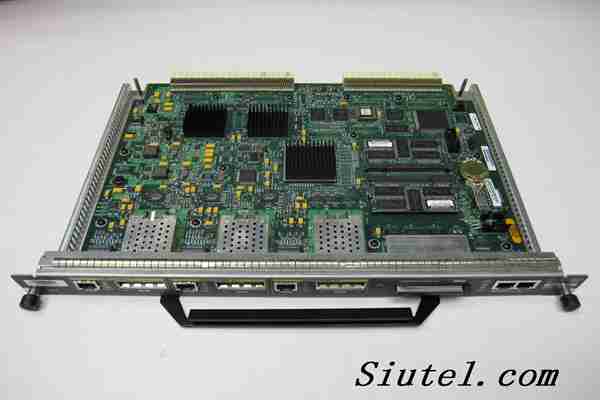

NPE-G1 |
|
|
|
产品名称：NPE-G1 |
|
产品编号：CISCO |
|
详细说明： |
|
NPE-G1
Technical Information
Application/Usage Wide Area Network
Interfaces/Ports
Interfaces/Ports 3 x 10/100/1000Base-T LAN
Interfaces/Ports Details 1 x RJ-45 Auxiliary Management
Interfaces/Ports Details 3 x RJ-45 10/100/1000Base-T LAN
Interfaces/Ports Details 1 x RJ-45 Console Management
Media & Performance
Connectivity Media Twisted Pair 10/100/1000Base-T
Data Transfer Rate 10 Mbps Ethernet
Data Transfer Rate 100 Mbps Fast Ethernet
Data Transfer Rate 1 Gbps Gigabit Ethernet
I/O Expansions
Expansion Slots 1 x PC Card
Expansion Slots 3 x GBIC
Processor & Chipset
Processor Broadcom BCM1250 700 MHz
Memory
Memory 256 MB CompactFlash (CF) Card Upgradeable
Memory 64 MB CompactFlash (CF) Card Installed
Memory 512 MB Layer 2 Cache Memory Processor Installed
Memory 256 MB SDRAM Installed
Memory 512 KB NVRAM Installed
Memory 128 MB CompactFlash (CF) Card Upgradeable
Memory 1 GB SDRAM Upgradeable
Memory 512 MB SDRAM Upgradeable
Memory 32 KB Layer 1 Cache Memory Processor Installed
Memory 16 MB Packet Memory Installed
Controls/Indicators
Status Indicators
Link
EN (Enable)
Slot Active
Power On
Environmental Conditions
Temperature 41°F (5°C) to 104°F (40°C) Operating
Temperature 23°F (-5°C) to 131°F (55°C) Operating Short Term
Temperature -40°F (-40°C) to 158°F (70°C) Storage
Temperature -38°F (-38.9°C) to 150°F (65.6°C) Storage
Humidity 5% to 95% Relative Humidity Storage
Humidity 5% to 85% Relative Humidity Operating
Humidity 5% to 90% Relative Humidity Operating Short Term
Altitude -196.84 ft to 13123.32 ft Operating
Physical Characteristics
Dimensions 1.4" Height x 15.2" Width x 11.1" Depth
Weight (Approximate) 3.25 lb
Miscellaneous
Additional Information Item Included:
Two 128MB mem modules (256MB total) for NPE-G1 in 7200 (MEM-NPE-G1-256MB)
Cisco 7200 Compact Flash Disk for NPE-G1, 64 MB Option (MEM-NPE-G1-FLD64)
Provides performance of up to 1 million packets per second (PPS) in Cisco Express Forwarding (CEF) switching (an increase of up to 250 percent over the Cisco 7200 Series Network Processing Engine NPE-400)
Offers three Gigabit Ethernet/Fast Ethernet ports that do not take up bandwidth points
Doubles the amount of available DRAM (to 1 GB)
Eliminates the requirement for an input/output (I/O) controller
Incorporates the functionality (flash memory and auxiliary and console ports) of the I/O controller
Eliminates I/O controller LAN interface bandwidth points
Provides modular processors and the ability to upgrade
Offers improved price performance
Two environmental sensors for monitoring the cooling air as it enters and leaves the chassis
Full-feature I/O controller functionality
Only one port per interface can be used at any one time. For example, for interface Gigabit Ethernet 0/1, either the RJ-45 port can be used or the GBIC port, but not both
A total of three ports on any of the three interfaces (0/1, 0/2, or 0/3) can be used at any one time; for example, 0/1 GBIC, 0/2 GBIC, and 0/3 RJ-45
There are two DRAM memory slots, so 256 MB of memory consists of two 128 MB memory SODIMMs, 512 MB consists of two 256 MB memory SODIMMs, and 1 GB consists of two 512 MB memory SODIMMs. It is necessary to have the same size SODIMM in each memory bank on an NPE-G1
Cisco 7200VXR chassis with an NPE-G1 does not require the use of an I/O controller, an I/O controller can still be used
The NPE-G1 is supported with the following Cisco 7200 Series I/O controller part numbers:
C7200-I/O
C7200-I/O-2FE/E
C7200-I/O-GE+E
The NPE-G1 is supported with all port adapters that can be ordered with the Cisco 7200VXR chassis as of August 1, 2002 except for the following:
PA-4C-E
PA-A2-4T1C-OC3SM
PA-A2-4T1C-T3ATM
PA-A2-4E1XC-OC3SM
PA-A2-4E1XC-E3ATM
PA-MCX-2TE1
PA-MCX-4TE1
PA-MCX-8TE1
PA-SRP-OC12MM
PA-SRP-OC12SMI
PA-SRP-OC12SML
PA-SRP-OC12SMX
PA-MC-STM-1MM
PA-VXA-1TE1-24+
PA-VXA-1TE1-30+
PA-VXB-2TE1+
PA-VXC-2TE1+
System Requirements Software:
The NPE-G1 is supported in 12.2(4)BW, 12.2(15)B, 12.2(14)S, 12.2(15)T, 12.1(14)E, and later Cisco IOS releases
Compatibility
The NPE-G1 is supported on the Cisco 7204VXR and Cisco 7206VXR chassis
Certifications & Standards Product Regulatory Approvals:
Safety and Electromagnetic Emissions
Underwriters Laboratories (UL) for the United States
Underwriters Laboratories, Canada (cUL) or Canadian Standards Association (CSA)
European Norm (EN)
International Electrotechnical Commission (IEC)
Australia/New Zealand Standard (AS/NZS)
Product Regulatory Compliance:
FCC Part 15 Class A device for electromagnetic interference limits
FCC Part 68 for connection to the public telephone network
Electrostatic Discharge EN61000-4
IEEE 802.1Q standard
Warranty
Limited Warranty:90 Days
|
|
 |
