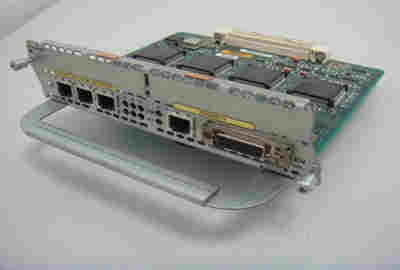

NM-4E |
|
|
|
产品名称：NM-4E |
|
产品编号：CISCO |
|
详细说明： |
|
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports: 4 x Ethernet LAN
Interfaces/Ports Details: 3 x RJ-45 10Base-T LAN
Interfaces/Ports Details: 1 x DB-15/RJ-45 10Base-T (AUI) LAN
Media & Performance
Connectivity Media: Twisted Pair 10Base-T
Data Transfer Rate: 10 Mbps Ethernet
Controls/Indicators
Status Indicators:
Network module status indicator, status LEDs including send/receive, half/full duplex, and LAN speed indication
Environmental Conditions
Temperature: 32?F (0?C) to 104?F (40?C) Operating
Temperature: -13?F (-25?C) to 158?F (70?C) Non-operating
Humidity: 5% to 95% Relative Humidity
Physical Characteristics
Dimensions: 1.6" Height x 7.1" Width x 7.2" Depth
Weight (Approximate): 2.00 lb Maximum
Miscellaneous
Additional Information:
The 4-port Ethernet network module supports up to four Ethernet connections
Ethernet port 0 uses either the AUI (DB-15) connector on the right side of the module or the 10BaseT (RJ-45) connector next to it, but only one of these two connections can be active at a time
Ethernet ports 1, 2 and 3 use 10BaseT connectors; these ports do not provide an AUI connector
Modular Router Solutions:
LAN-to-LAN Routing
DSL Access
Dialup Remote Access
ISDN Concentration
Serial & Legacy Concentration
Voice & Fax Integration
Protocols Supported:
Full Cisco IOS software support by release 11.2
Physical Limitation of Serial Modules per Chassis:
Cisco 3660: 6
Cisco 2600 and 2600xm: 1
Cisco 3640: 3
Cisco 3620: 2
Comments:
No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules
System Requirements: Cisco IOS Software Release Requirements:
Cisco IOS Release 11.2.(5)P or later
Compatibility: Supported Platforms & Minimum IOS Versions:
3745 - Not Available
3725 - Not Available
3660 series - 12.0(5)T
3640 - 11.2(6)P
3620 - 11.2(6)P
2691 - Not Available
2650 - 12.1(3)T
2600XM Series - 12.1(14) or 12.2(8)T1
2600 series - 11.3(4)T
1720 - Not Available
1600 series - Not Available
Warranty
Limited Warranty: 90 Days
|
|
 |
