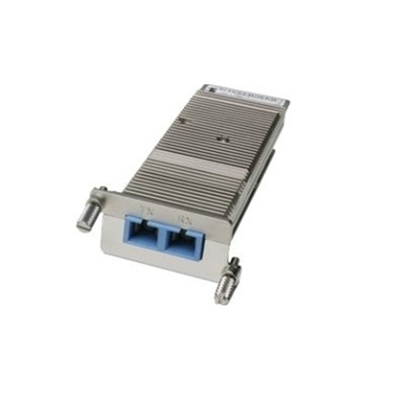

DWDM-XENPAK-60.61= |
|
|
|
产品名称：DWDM-XENPAK-60.61= |
|
产品编号：CISCO |
|
详细说明： |
|
The Cisco DWDM XENPAKs are supported across a variety of Cisco switches, routers, and optical transport devices. For more details, refer to the document Cisco DWDM XENPAK Compatibility Matrix.
Connectors and Cabling
Technical Details
Data Rate: 10.3Gbps
Wavelength: 1560.61nm
Distance/Power Budget: 80km
Fiber Type: SMF
DDMI: With
• Equipment: Standard XENPAK interface
Network: Dual SC/PC connector
Note: Only connections with patch cords with PC or UPC connectors are supported. Patch cords with APC connectors are not supported. All cables and cable assemblies used must be compliant with the standards specified in the standards section.
Technical Details
Data Rate: 10.3Gbps
Wavelength: 1560.61nm
Distance/Power Budget: 80km
Fiber Type: SMF
DDMI: With
We Provide another Product ：
Product Number Description ITU Channel
DWDM-XENPAK-60.61= 10GBASE-DWDM 1560.61 nm XENPAK (100-GHz ITU grid) 21
DWDM-XENPAK-59.79= 10GBASE-DWDM 1559.79 nm XENPAK (100-GHz ITU grid) 22
DWDM-XENPAK-58.98= 10GBASE-DWDM 1558.98 nm XENPAK (100-GHz ITU grid) 23
DWDM-XENPAK-58.17= 10GBASE-DWDM 1558.17 nm XENPAK (100-GHz ITU grid) 24
DWDM-XENPAK-56.55= 10GBASE-DWDM 1556.55 nm XENPAK (100-GHz ITU grid) 26
DWDM-XENPAK-55.75= 10GBASE-DWDM 1555.75 nm XENPAK (100-GHz ITU grid) 27
DWDM-XENPAK-54.94= 10GBASE-DWDM 1554.94 nm XENPAK (100-GHz ITU grid) 28
DWDM-XENPAK-54.13= 10GBASE-DWDM 1554.13 nm XENPAK (100-GHz ITU grid) 29
DWDM-XENPAK-52.52= 10GBASE-DWDM 1552.52 nm XENPAK (100-GHz ITU grid) 31
DWDM-XENPAK-51.72= 10GBASE-DWDM 1551.72 nm XENPAK (100-GHz ITU grid) 32
DWDM-XENPAK-50.92= 10GBASE-DWDM 1550.92 nm XENPAK (100-GHz ITU grid) 33
DWDM-XENPAK-50.12= 10GBASE-DWDM 1550.12 nm XENPAK (100-GHz ITU grid) 34
DWDM-XENPAK-48.51= 10GBASE-DWDM 1548.51 nm XENPAK (100-GHz ITU grid) 36
DWDM-XENPAK-47.72= 10GBASE-DWDM 1547.72 nm XENPAK (100-GHz ITU grid) 37
DWDM-XENPAK-46.92= 10GBASE-DWDM 1546.92 nm XENPAK (100-GHz ITU grid) 38
DWDM-XENPAK-46.12= 10GBASE-DWDM 1546.12 nm XENPAK (100-GHz ITU grid) 39
DWDM-XENPAK-44.53= 10GBASE-DWDM 1544.53 nm XENPAK (100-GHz ITU grid) 41
DWDM-XENPAK-43.73= 10GBASE-DWDM 1543.73 nm XENPAK (100-GHz ITU grid) 42
DWDM-XENPAK-42.94= 10GBASE-DWDM 1542.94 nm XENPAK (100-GHz ITU grid) 43
DWDM-XENPAK-42.14= 10GBASE-DWDM 1542.14 nm XENPAK (100-GHz ITU grid) 44
DWDM-XENPAK-40.56= 10GBASE-DWDM 1540.56 nm XENPAK (100-GHz ITU grid) 46
DWDM-XENPAK-39.77= 10GBASE-DWDM 1539.77 nm XENPAK (100-GHz ITU grid) 47
DWDM-XENPAK-38.98= 10GBASE-DWDM 1538.98 nm XENPAK (100-GHz ITU grid) 48
DWDM-XENPAK-38.19= 10GBASE-DWDM 1538.19 nm XENPAK (100-GHz ITU grid) 49
DWDM-XENPAK-36.61= 10GBASE-DWDM 1536.61 nm XENPAK (100-GHz ITU grid) 51
DWDM-XENPAK-35.82= 10GBASE-DWDM 1535.82 nm XENPAK (100-GHz ITU grid) 52
DWDM-XENPAK-35.04= 10GBASE-DWDM 1535.04 nm XENPAK (100-GHz ITU grid) 53
DWDM-XENPAK-34.25= 10GBASE-DWDM 1534.25 nm XENPAK (100-GHz ITU grid) 54
DWDM-XENPAK-32.68= 10GBASE-DWDM 1532.68 nm XENPAK (100-GHz ITU grid) 56
DWDM-XENPAK-31.90= 10GBASE-DWDM 1531.90 nm XENPAK (100-GHz ITU grid) 57
DWDM-XENPAK-31.12= 10GBASE-DWDM 1531.12 nm XENPAK (100-GHz ITU grid) 58
DWDM-XENPAK-30.33= 10GBASE-DWDM 1530.33 nm XENPAK (100-GHz ITU grid) 59
WDM-XENPAK-REC= 10GBASE-WDM receive-only XENPAK
if interested, feel free to email us：info@siutel.com
|
|
 |
|
