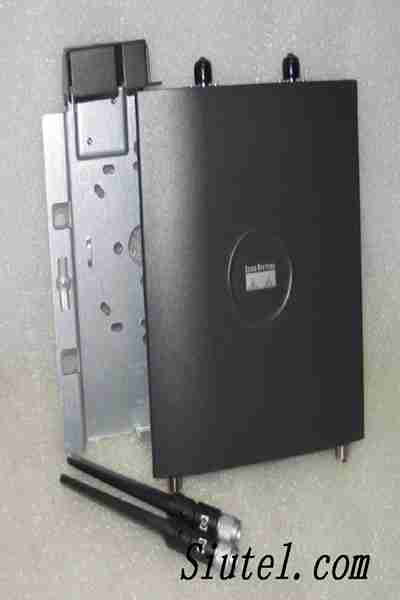

AIR-LAP1242AG-A-K9 |
|
|
|
产品名称：AIR-LAP1242AG-A-K9 |
|
产品编号：CISCO |
|
详细说明： |
|
AIR-LAP1242AG-A-K9
Technical Information
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Interfaces/Ports
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Management & Protocols
Security Features:
High security without performance degradation
RC4 encryption algorithm
High security without performance degradation
RC4 encryption algorithm
Power Description
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply
Physical Characteristics
Form Factor: Wall-mountable
Dimensions: 1.1 Height x 6.6 Width x 8.5 Depth
Weight: 2 lb
General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240AG
Product Name: Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point
Product Type: Wireless Access Point
Technical Information
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Antennas: 4
Antenna Connector: RP-TNC Connector
Indoor Antenna Range: 460 ft
Outdoor Antenna Range: 900 ft
Channels: 12 Channel Non-overlapping IEEE 802.11a USA
Channels: 3 Channel Non-overlapping IEEE 802.11b/g USA
Channels: 12 Channel IEEE 802.11a USA
Channels: 11 Channel IEEE 802.11b/g USA
Wireless Transmission Speed: 108 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 108Mbps 2x Mode
Transmission Speed Details: 1Mbps IEEE 802.11b
Miscellaneous
Additional Information:
Antenna Connectors:
2.4 GHz: Dual RP-TNC connectors
5 GHz: Dual RP-TNC connectors
Certifications & Standards:
Wi-Fi
FCC Bulletin CET-65C
RSS-102
IEEE 802.3af
IEEE 802.11i
IEEE 802.1x
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
Safety:
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
NIST FIPS 140-2 level 2 validation
Radio approvals:
FCC Part 15.247, 15.407
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
AS/NZS 4268.2003 (Australia and New Zealand)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
Wi-Fi
FCC Bulletin CET-65C
RSS-102
IEEE 802.3af
IEEE 802.11i
IEEE 802.1x
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
Safety:
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
NIST FIPS 140-2 level 2 validation
Radio approvals:
FCC Part 15.247, 15.407
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
AS/NZS 4268.2003 (Australia and New Zealand)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
Warranty
Limited Warranty:90 Days
|
|
 |
